The spout ready

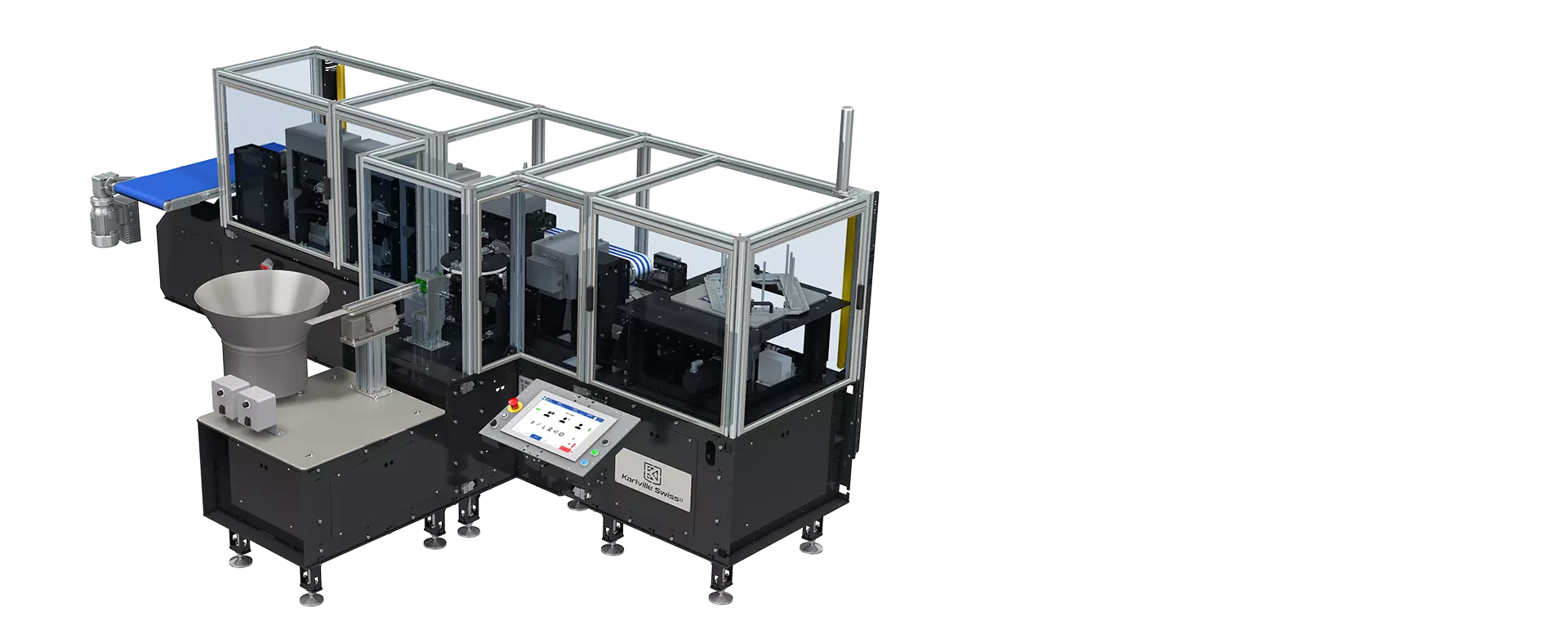

A compact, efficient, reliable, high performance spout inserting machine, purpose-built for precise insertion and sealing of spouts into premade pouches. Designed with inline corner-cutting capability, it seamlessly prepares pouches for spout placement. Ideal for both top and corner spout applications, this versatile system meets the demands of various market segments with consistent performance and adaptability.
Minimum 4 Servo System
Sustainable Machines for Sustainable Packaging
All Karlville Swiss pouch machines have embedded a dynamic braking energy storage device to create more sustainability in drive technology and lowering operational costs and a static energy storage device that protects against damage from temporary power failures. Only 6KWH consumption during production.
Layout
Machine Specifications
| Mechanical speed | 30-35cpm |
|---|---|
| Mechanical thickness | 50-200μ |
| Pouch width for top spout | 90-250mm |
| Pouch width for corner spout | 120-250mm |
| Type of materials | Laminated Films, Mono-Materials, Co-Extruded Films and Paper-Based |
| Standard machine dimension (L x W x H) | 4000 x 2100 x 1950mm |
Key machinery advantages
— Compact machine.
— Easy to use machine.
— Fully servo driven machine .
— Custom solutions.
— Intuitive software (for operation, set-up & maintenance).
— Low maintenance requirements.
— Easy cleaning high-frame.
— Quick changeover machine.
— Fully connected with integrated diagnostics.
— New generation materials ready.
— Digital printing certified.
— Spout pre-heat function.
— Alarm display.
— Industry 4.0 compliant.
— Designed with sustainability in mind.
