Pouch making

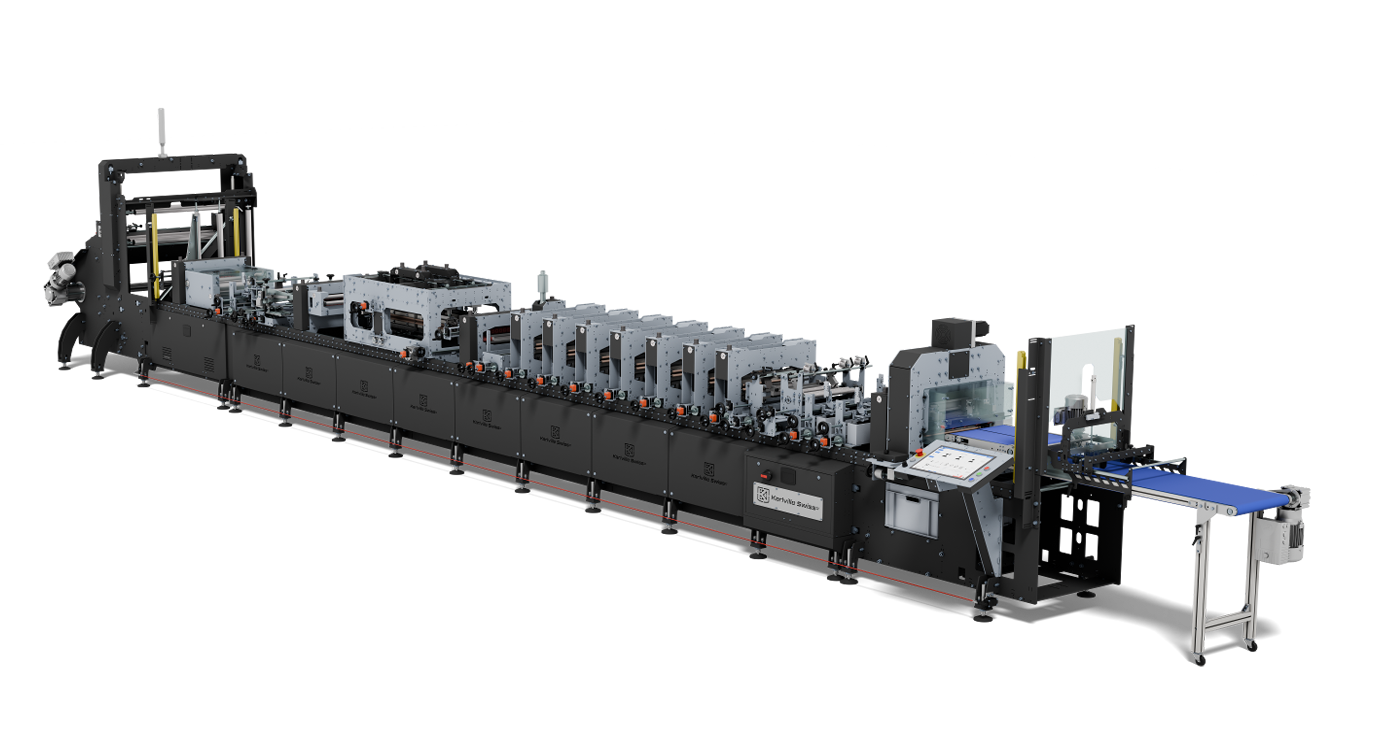

KS-SUP-400-H
Compact pouch machine designed for paper based structures, fold & tuck gusset, quick changeover, ideal for short-medium run high performance production of:
2-side-seal pouches from 1 web without and with zipper
3-side-seal pouches from 1 web without and with zipper
Stand-up pouches from 1 web without and with zipper
Sustainable Machines for Sustainable Packaging
All Karlville Swiss pouch machines have embedded a dynamic braking energy storage device to create more sustainability in drive technology and lowering operational costs and a static energy storage device that protects against damage from temporary power failures. Only 6KWH consumption during production.
Pouches
2-Side-Seal pouches from 1 web
3-Side-Seal pouches from 1 web
Stand-up pouches from 1 web
3-side-seal pouches with zipper from 1 web (bottom fill)
Small stand-up pouches from 2 webs gusset inserted
Small stand-up pouches with zipper from 1 web
Stand-up pouches from 2 webs gusset inserted

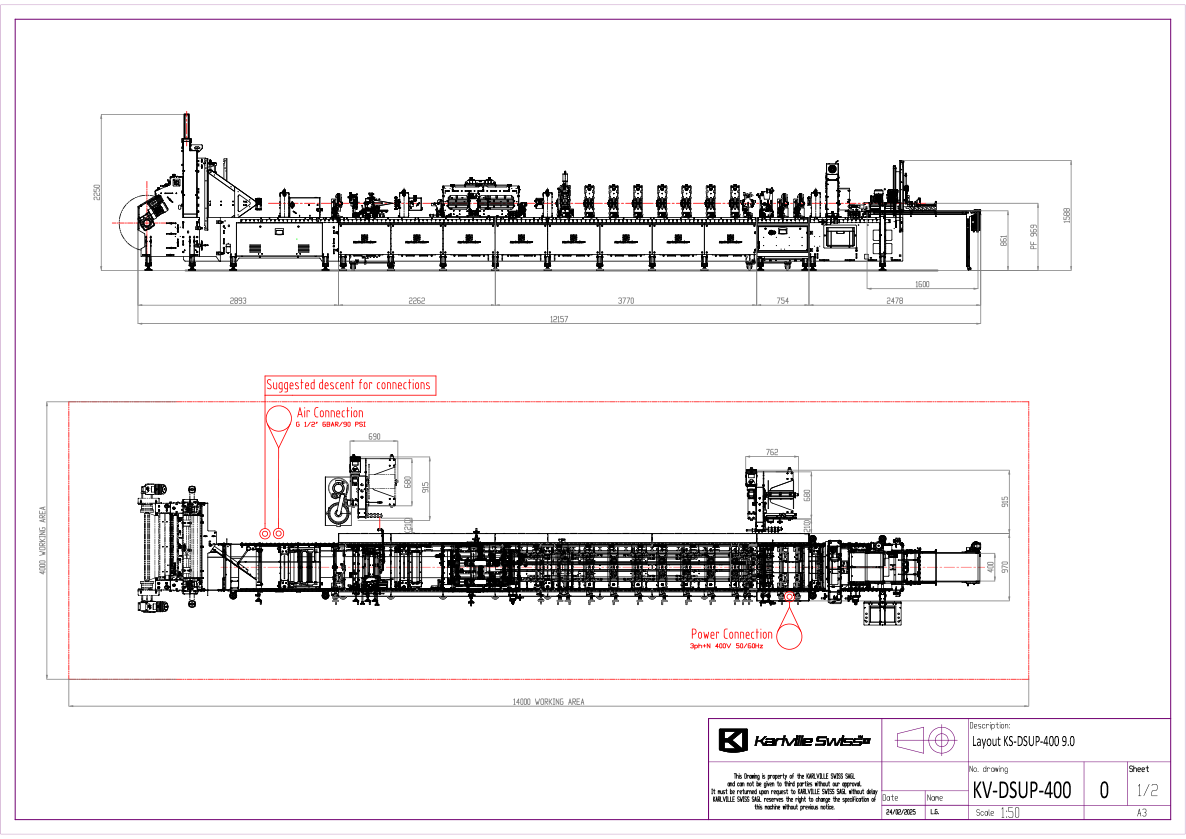

Layout
Machine Specifications
| Mechanical speed | 300cpm |
|---|---|
| Main unwinder width | 840mm – 33.07” |
| Main reel core | 76mm – 3” (Opt. 152mm - 6“) |
| Main reel diam. | 800mm – 31.49” |
| Material specs | PET, ALU, PA laminated materials with PP or PE. Mono-materials (PE or PP based). Paper, recyclable and compostable may require specific tooling to be quoted as optional. |
| Material thickness | 55-200μ |
| Standard machine dimension (L x W x H) | 10600 x 1850 x 2250mm |
Standard Basic Machine Configuration*
| Inline unwinder | Yes |
|---|---|
| Long sealing bar length | 560mm |
| Long cooling bar length | 360mm |
| Ultrasonic zipper crush | Yes |
| Cross sealing stations | 3 |
| Cross cooling stations | 1 |
| Punching stations | 2 |
| Cross cutting | Guillotine |
* Various options are available on request; final machine dimensions may change accordingly.
Key machinery advantages
— Compact machine.
— Single web.
— Ideal for short-medium runs.
— Best configuration for paper based materials.
— Best solution for mid-wide web printers.
— Easy to use machine.
— Modular design – indipendent servo control.
— Custom solutions.
— Intuitive software (for operation, set-up & maintenance)
— Unique guided set-up procedure from recipe.
— Very low scrap rate during machine start-up.
— Fully servo driven machine.
— Low maintenance requirements.
— Initial reject discard function.
— Easy cleaning high-frame.
— Quick changeover machine.
— Fully connected with integrated diagnostics.
— New generation materials ready.
— Digital printing certified.
— Embedded dynamic braking device.
— Static energy storage device.
— Industry 4.0 compliant.
— Sustainable design, only 6KWH consumption.
