KS-SUP-400-D
The compact
KS-SUP-400-D is a compact stand-up pouch making machine designed for the production of flexible packaging pouches using standard materials, including mono-materials such as PE and PP.
Minimum 8 Servo System
It stands out among stand-up pouch machinery because of its reduced footprint, intuitive operation and fast changeover capabilities: the ideal solution for manufacturers seeking efficient pouch production in facilities with limited space availability.
Designed for short production runs, this automatic pouch packaging machine helps reduce start-up waste while maintaining high production quality and reliable performance.
Like all machines in the SUP series, KS-SUP-400-D is suitable for a wide range of pouch applications, including:
- coffee and coffee beans
- snacks and dry food
- pet food
- powders
- household products
- personal care products
Benefits of stand-up pouch packaging:
- Space-efficient packaging and storage solution
- Lower transportation and handling costs thanks to reduced weight
- Versatile pouch formats for multiple product categories
- Reduced material consumption compared to traditional packaging
- Improved packaging efficiency across short production runs
Stand-up pouches
2-Side-Seal pouches from 1 web
3-Side-Seal pouches from 1 web
Stand-up pouches from 1 web
3-Side-Seal pouches from 2 webs
3-Side-Seal pouches with zipper from 1 web (bottom fill)
3-Side_seal pouches with zipper from 2 webs (bottom fill)
Small stand-up pouches with zipper from 1 web
Small stand-up pouches with zipper from 2 webs gusset inserted
Small stand-up pouches with zipper from 3 webs
Stand-up pouches from 2 webs gusset inserted
Stand-up pouches from 3 webs
KS-SUP-400-D combines compact dimensions, operational simplicity and production efficiency in a pouch-making system designed for manufacturers looking to maximize productivity in limited production spaces.

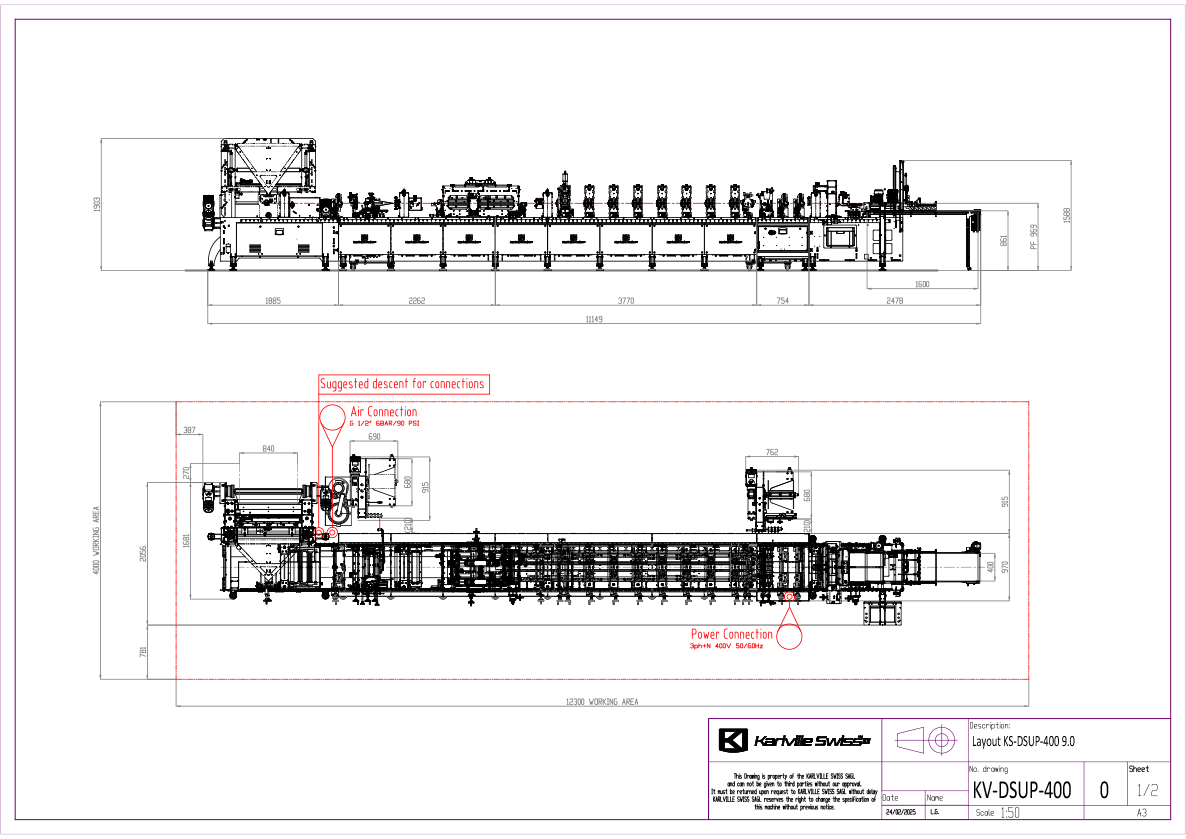

Compact stand-up pouch making machine Layout
Machine Specifications
| Mechanical speed | 300cpm |
|---|---|
| Main unwinder width | 840mm – 33.07” |
| Main reel core | 76mm – 3” (Opt. 152mm - 6“) |
| Main reel diam. | 800mm – 31.49” |
| Material specs | Laminated Films, Mono-Materials, CoExtruded Films and optionally Paper-Based. |
| Material thickness | 50-200μ |
| Standard machine dimension (L x W x H) | 11200 x 1700 x 2250mm |
Standard Basic Machine Configuration*
| Side unwinder | Yes |
|---|---|
| Long sealing bar length | 560mm |
| Long cooling bar length | 360mm |
| Ultrasonic zipper crush | Yes |
| Cross sealing stations | 5 |
| Cross cooling stations | 2 |
| Punching stations | 2 |
| Cross cutting | Flying knife |
* Various options are available on request; final machine dimensions may change accordingly.
Key machinery advantages
Efficiency & Performance:
— Compact design and user-friendly interface.
— Ideal for short to medium runs.
— High speed and productivity.
— Quick job changeover with minimal start-up waste.
— Intuitive software with recipe-guided setup.
Advanced Technology:
— Modular design with independent servo control.
— Fully servo-driven architecture.
— Digital printing certified.
— Ready for next-generation materials.
Maintenance & Sustainability:
— Low maintenance and easy cleaning.
— Initial reject discard function.
— Energy-efficient: only 6 KWH consumption.
— Quick job changeover with minimal start-up waste.
— Sustainable design, compliant with Industry 4.0.
Connectivity & Safety:
— Fully connected with integrated diagnostics.
— Built-in dynamic braking and static energy storage.
— Custom and automatization solutions available on request.
